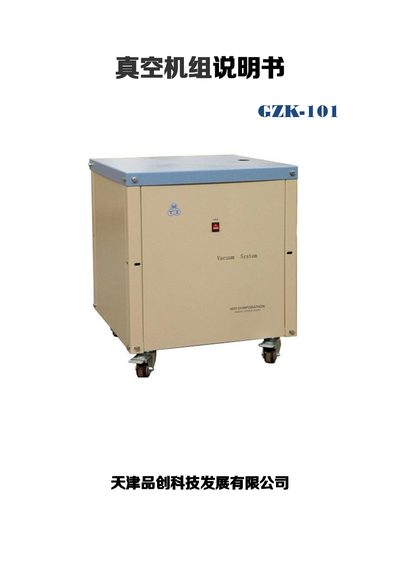

The Tianjin Pinchuang GZK-101 vacuum unit manual provides specifications, features, and operating guidelines for the low‑vacuum system.
The GZK-101 is a low‑vacuum unit designed by Tianjin Pinchuang Technology Development Co., Ltd. It features a dual‑rotor mechanical pump (TRP‑12), KF‑D25 interface, high‑vacuum flange, digital vacuum gauge (CVM‑211) and various pipe fittings. The unit complies with CE certification.
Key technical data include a 220 V 50/60 Hz power supply, 550 W pump motor, 4 L/s pumping speed, and a maximum pressure of 6.7×10⁻⁴ mbar. The chassis measures 600 mm × 600 mm × 600 mm, supports up to 1000 lbs, and contains a 1000 ml oil tank. Standard accessories such as stainless‑steel wave‑type hoses, clamps, and KF‑25 fittings are supplied. This manual is written in Chinese.
| Power Supply | 220V 50/60Hz |
|---|---|
| Pump Motor Power | 550W |
| Pumping Speed | 4 L/s |
| Maximum Pressure | 6.7×10⁻⁴ mbar |
| Oil Tank Volume | 1000 ml |
| Maximum Load | 1000 lbs |
The GZK-101 can reach an ultimate vacuum of 10⁻³ torr.
It is equipped with a dual‑rotor mechanical pump model TRP‑12.
Yes, the unit has passed CE certification.
