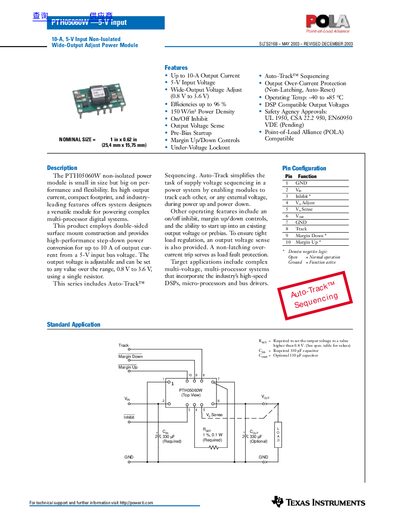

The Texas Instruments PTH05060W is a 5‑V input, non‑isolated power module delivering up to 10 A with adjustable output voltage from 0.8 V to 3.6 V.
The PTH05060W is a compact, non‑isolated power module designed for multi‑processor digital systems. It accepts a 5‑V input and can supply up to 10 A of output current. Output voltage is adjustable over a 0.8 V‑3.6 V range using a single external resistor, and the module includes features such as Auto‑Track™ sequencing, over‑current protection, under‑voltage lockout, and output voltage sense for tight regulation.
The document provides pin descriptions, mechanical dimensions, absolute maximum ratings, and detailed electrical specifications. It also includes ordering information, recommended input and output capacitors, and application notes on voltage adjustment and transient response.
| Efficiency | up to 96 % |
|---|---|
| Output Voltage Adjust Range | 0.8 V – 3.6 V |
By connecting a resistor between the Vo Adjust pin and GND; the resistor value determines the output voltage within 0.8 V‑3.6 V.
A minimum 330 µF input capacitor rated for at least 500 mA rms ripple current is required.
