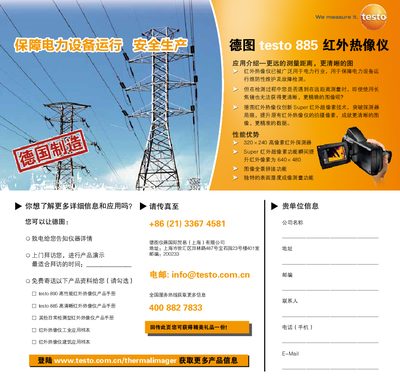

The Testo 885 infrared thermography camera provides high‑resolution imaging, Super super‑pixel technology, image stitching and surface moisture measurement…
The Testo 885 infrared thermography camera is designed for the power industry, offering clear images and precise data even at long distances. Its Super infrared super‑pixel technology boosts pixel resolution from 320×240 to 640×480, while the image‑stitching function creates large‑area panoramic pictures.
Additional features include a unique surface‑moisture imaging mode, a 4.3" color LCD touchscreen, interchangeable lenses, and a built‑in 3 MP visible‑light camera. The unit supports manual and auto focus, digital zoom, and stores up to 3000 images on a 2 GB SD card, making it suitable for detailed inspections and reporting. This manual is written in Chinese.
| Detector resolution | 320×240 pixels (upgradable to 640×480 with Super super‑pixel) |
|---|---|
| Super infrared super‑pixel function | Instantly boosts infrared pixel to 640×480 |
| Image stitching (panorama) function | Enabled |
| Surface moisture imaging | Enabled |
| Temperature measurement range | -20 °C … +100 °C / 0 °C … +350 °C (selectable) |
| Measurement accuracy | ±2 % / ±2 °C |
| Thermal sensitivity (NETD) | < 0.03 °C (30 mK) @ +30 °C |
| Display | 4.3" color LCD touchscreen |
| Storage | 2 GB SD card (≈2000‑3000 images) |
It can measure from -20 °C to +100 °C, or from 0 °C to +350 °C when switched.
The NETD is less than 0.03 °C (30 mK) at +30 °C.
Yes, it includes an image‑stitching (panorama) function.
The detector is 320×240 pixels, which can be upgraded to 640×480 using the Super super‑pixel feature.
