Testo 735 Temperature Measuring Instrument Product Leaflet

The Testo 735 is a high‑precision 3‑channel temperature measuring instrument with 0.05 °C system accuracy, IP65 protection and up to 10,000 stored values.

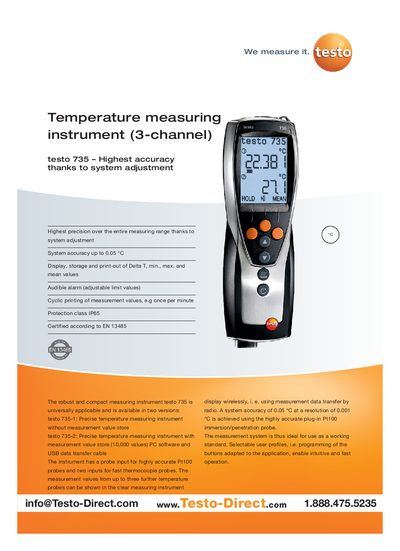

Testo 735 Temperature Measuring Instrument Product Leaflet - cover page
Brand
testo
Category
Temperature monitor
Document type
Product Leaflet
Language
English
Pages
8
File format
PDF
File size
1.3 MB
Published
04 October, 2026
Updated
04 October, 2026
MD5 checksum
67714BAF4FDF4E6A9D96AB1D853FD5F4

About this manual

The Testo 735 is a robust, compact temperature measuring instrument available in two versions (735‑1 without storage and 735‑2 with storage for up to 10,000 values). It offers three measurement channels, supports Pt100 and various thermocouple types, provides wireless data transfer via radio probes, and includes PC software with USB data transfer. The device meets EN 13485 certification and features an audible alarm, cyclic printing, and selectable user profiles.

A wide range of accessories is offered, including radio probes for immersion or surface measurements, numerous probe types (Pt100, thermocouple, air, surface, food probes), calibration certificates, a fast printer, battery chargers, and protective cases. These accessories extend the instrument’s capabilities for industrial, laboratory, and food‑service applications.

What's inside

  • Technical Data
  • Accessories
  • Radio Probes
  • Probe Types
  • General Specifications

Specifications

System accuracy±0.05 °C
Measurement range (Pt100)0 °C to +300 °C
Protection classIP65
Dimensions220 × 74 × 46 mm
Weight428 g
Battery typeAlkali manganese AA
Operating temperature-20 °C to +50 °C
Storage temperature-30 °C to +70 °C
Warranty2 years

Frequently asked questions

What is the system accuracy of the Testo 735?

The instrument provides a system accuracy of up to ±0.05 °C.

How many measurement values can the Testo 735‑2 store?

The 735‑2 version can store up to 10,000 measurement values.

What protection class does the Testo 735 have?

It is rated with protection class IP65.

What battery type does the instrument use?

It uses an alkaline manganese AA (mignon) battery.
