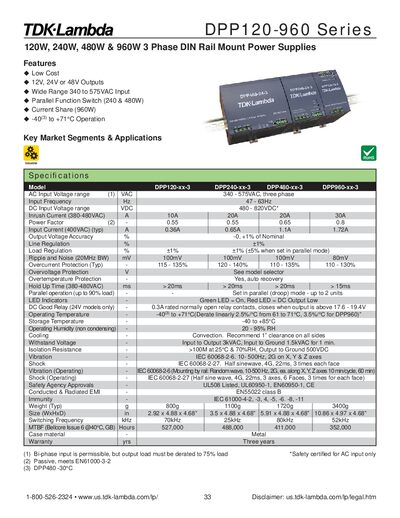

The TDK‑Lambda DPP120‑960 Series offers 3‑phase DIN‑rail power supplies from 120 W to 960 W with a wide input range and built‑in protection features.
The DPP120‑960 Series provides 3‑phase DIN‑rail mounted power supplies in four output power options (120 W, 240 W, 480 W, 960 W). Each unit can be configured for 12 V, 24 V or 48 V outputs and accepts a wide AC input voltage range of 340 V to 575 V. Features include parallel operation, current sharing, over‑current, over‑voltage and over‑temperature protection, and compliance with EMC standards.
Physical specifications vary by model: the 120 W unit weighs about 800 g and measures 2.92 × 4.88 × 4.68 in, while the 960 W unit weighs 3400 g and measures 10.86 × 4.97 × 4.68 in. The series is UL508, UL60950‑1, EN60950‑1 and CE certified, and meets IEC vibration and shock requirements.
| Output Power Options | 120 W, 240 W, 480 W, 960 W |
|---|---|
| Input Voltage Range | 340 V to 575 V AC |
| Output Voltage Options | 12 V, 24 V or 48 V |
| Switching Frequency (120 W model) | 70 kHz |
| Dimensions (960 W model) | 10.86 × 4.97 × 4.68 in |
It accepts a wide AC input voltage range of 340 V to 575 V.
The DPP960 model measures 10.86 × 4.97 × 4.68 in.
It is UL508 Listed, UL60950‑1, EN60950‑1 and CE certified.
