LZSA Series Single Output Industrial Power Supplies is an industrial power supply produced by Littelfuse. It features a rugged mechanical design, wide range of output adjustment, and reduced the need for custom outputs.

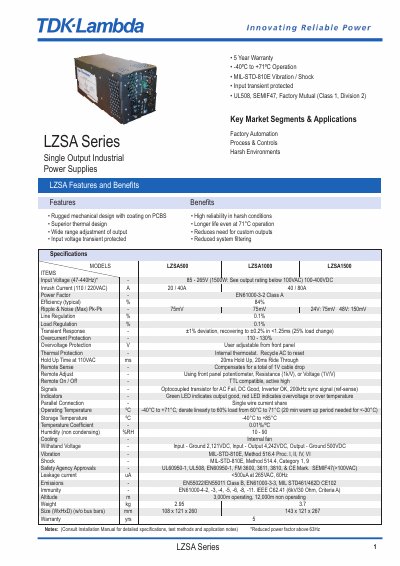

This document provides technical data for the TDK-Lambda LZSA Series of single output industrial power supplies. Key features include a 5-year warranty, operation from -40°C to +71°C, MIL-STD-810E vibration and shock resistance, and input transient protection suitable for harsh environments like factory automation.
| Operating Temperature Range | -40°C to +71°C |
|---|---|
| Input Voltage (AC) | 85 - 265V |
| Efficiency (typical) | 84% |
| Ripple & Noise (Max) | 75mV |
| Line Regulation | 0.1% |
| Load Regulation | 0.1% |
The LZSA Series comes with a 5-year warranty.
Yes, they feature rugged mechanical design and MIL-STD-810E Vibration / Shock resistance.
