Owner's manual for the Tamron AF10-24mm F/3.5-4.5 Di II LD Aspherical [IF] lens, covering mounting, operation, specifications, and care.

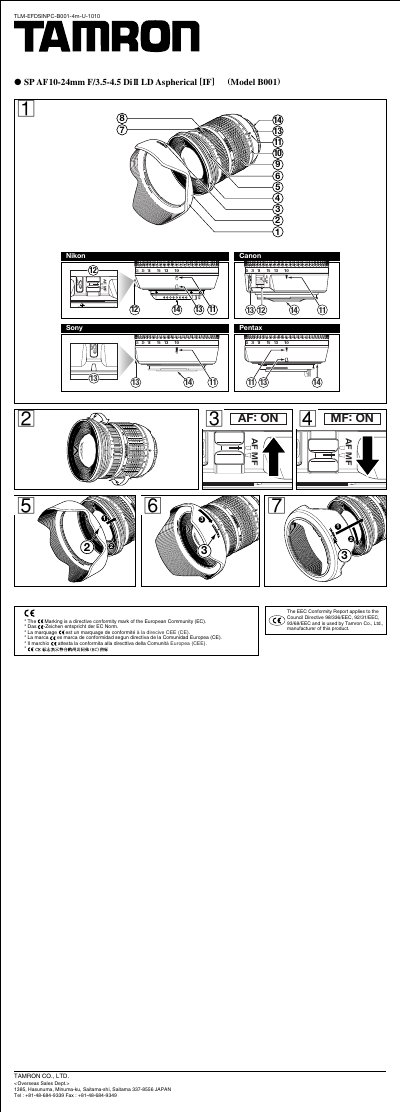

![Tamron AF10-24mm F/3.5-4.5 Di II LD Aspherical [IF] Lens Owner's Manual - cover page](/uploads/covers/75/755278a0894d8c3c823a3b1ef840c202.jpg)
This manual provides instructions for the Tamron AF10-24mm F/3.5-4.5 Di II LD Aspherical [IF] lens, a Di II lens designed for APS‑C digital SLR cameras. It includes safety precautions, handling guidelines, and technical specifications.
Key sections cover attaching and removing the lens, autofocus and manual focus operation, zooming, lens hood installation, and detailed care and maintenance procedures to ensure long‑term performance.
| Focal Length | 10-24 mm |
|---|---|
| Maximum Aperture | F/3.5 - 4.5 |
| Angle of View | 108°‑44' to 60°‑20' |
| Lens Construction | 9/12 |
| Minimum Focusing Distance | 0.24 m (0.79') |
| Maximum Magnification | 1:5.13 (at 24 mm) |
| Filter Size | Ø77 mm |
| Length | 86.5 mm (3.4") |
| Diameter | Ø83.2 mm (3.28") |
| Weight | 400 g (14.1 oz) |
Remove the rear cap, align the lens attachment mark (q) with the camera’s counterpart, insert the lens and rotate clockwise (counter‑clockwise for Nikon) until it click‑locks.
Press the lens release button on the camera, turn the lens counter‑clockwise (clockwise for Nikon) and lift it off the mount.
The minimum focusing distance is 0.24 m (0.79 in).
