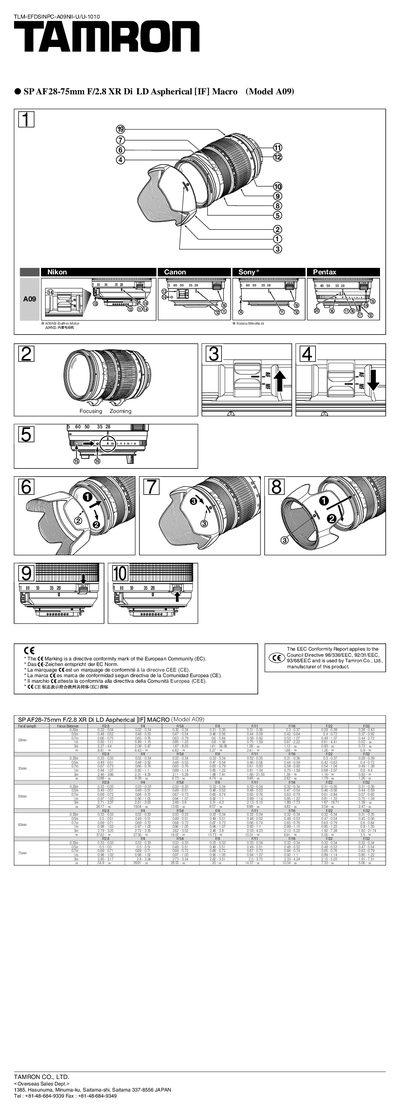

![Tamron SP AF28-75mm F/2.8 XR Di LD Aspherical [IF] MACRO (A09) User Manual - cover page](/uploads/covers/43/438998b3a2668a8950fd4666705d45a4.jpg)
This manual introduces the Tamron SP AF28‑75mm F/2.8 XR Di LD Aspherical [IF] MACRO lens (model A09). It provides step‑by‑step instructions for installing and removing the lens, operating the autofocus/manual focus switch, and using the zoom lock mechanism.
Additional sections cover aperture adjustment for various camera mounts, shade hood attachment, cleaning and maintenance tips, and safety precautions to protect the lens and ensure reliable performance. This manual is written in Chinese.
| Focal length | 28‑75 mm |
|---|---|
| Maximum aperture | F/2.8 |
| Minimum focusing distance | 0.33 m |
| Diagonal angle of view | 7.5° – 32° |
| Filter size | Ø 67 mm |
| Length | 92.05 mm |
| Diameter | Ø 73 mm |
| Weight | 510 g |
| Maximum magnification | 1:3.9 (at 75 mm) |
Remove the rear cap, align the lens’s attachment mark with the camera’s corresponding mark, insert the lens, and rotate it clockwise (or counter‑clockwise for Nikon) until it locks.
Set the zoom to the 28 mm position, then push the zoom‑lock switch forward; the lock indicator turns red, preventing the barrel from extending unintentionally.
The closest focusing distance is 0.33 m.
Use a lens cloth or a microfiber cloth lightly dampened with cleaning solution, wipe in a circular motion from the center outward, and keep the front element covered when not in use.
