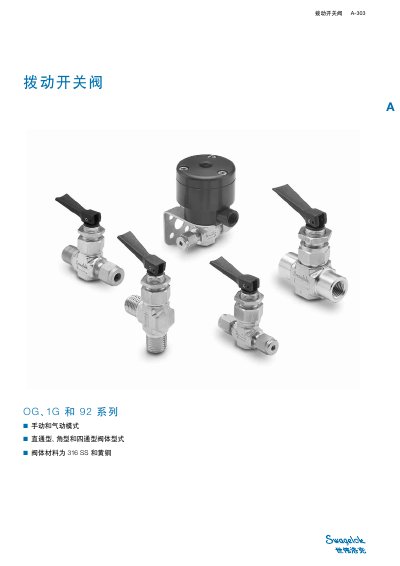

Technical data, ordering info and material options for Swagelok OG, 1G and 92 series toggle valves.
This document provides detailed specifications, material choices, and ordering dimensions for Swagelok toggle valves in the OG, 1G and 92 series. It covers both stainless‑steel and brass body options, a range of orifice sizes, flow coefficients and pressure‑temperature ratings.
Additional sections describe actuator types, optional accessories such as O‑ring kits and handle color codes, as well as cleaning, packaging and warranty information for the valves. This manual is written in Chinese.
| Valve body material | 316 stainless steel and brass |
|---|---|
| Orifice size range | 0.080 – 0.250 in. (2.0 – 6.4 mm) |
| Flow coefficient (Cv) | 0.11 – 0.70 |
The valve body is offered in 316 stainless steel or brass.
