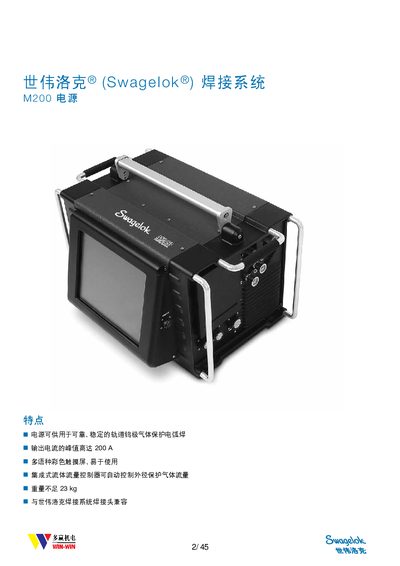

The Swagelok M200 welding system power supply user manual provides setup, operation, specifications, and accessory ordering information.
The M200 power supply delivers a peak output current of 200 A for reliable, stable GTAW welding. It features a 12.1‑inch high‑resolution SVGA touchscreen, multilingual interface, integrated fluid flow controller, and a lightweight design under 23 kg.
The manual covers operation steps, remote‑control console usage, accessory options, and ordering details, including USB ports, VGA and serial connections, and supported languages such as Chinese, English, French, German, Japanese, Korean, Spanish and Swedish. This manual is written in Chinese.
| Peak output current | 200 A |
|---|---|
| Input voltage | 100 ~ 230 V AC |
| Output current range | 2 ~ 200 A DC |
| Weight | 49.7 lb (22.5 kg) |
| Dimensions (H × W × D) | 13.5 × 22.8 × 15.5 in (34.3 × 57.9 × 39.4 cm) |
| Touchscreen size | 12.1 in (30.7 cm) SVGA |
| USB ports | Four USB‑A ports |
| Supported languages | Chinese (simplified/traditional), English, French, German, Japanese, Korean, Spanish, Swedish |
The M200 can deliver a peak output current of up to 200 A.
The unit includes four USB‑A ports for connecting peripherals.
It supports Chinese (simplified and traditional), English, French, German, Japanese, Korean, Spanish and Swedish.
