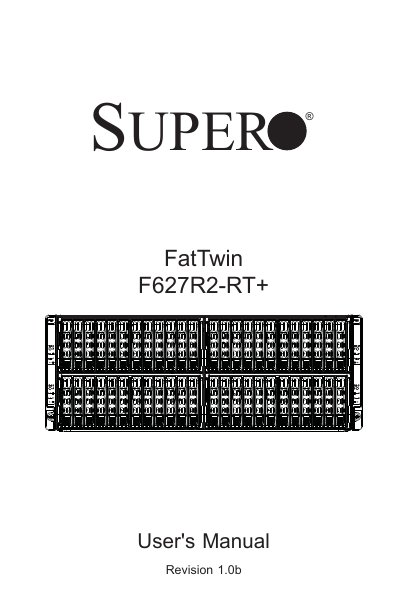

This manual provides installation, configuration, and system interface instructions for the Supermicro FatTwin F627R2-RT+ high-end server.
The Supermicro FatTwin F627R2-RT+ is a high-end server based on the F424BC-R1K28B 4U rackmount chassis and the dual processor X9DRFR serverboard. It features four nodes, each equipped with eight hot-swap 2.5" SAS/SATA drives and four hot-swap 2.5" SATA hard disk drives.
| Processors per node | Two E5-2600 or E5-2600 V2 series processors |
|---|---|
| Socket type | LGA 2011 |
| Chipset per node | One C602 chipset |
| BIOS size per node | 128 MB |
| Memory capacity (LRDIMM) | 512 GB |
| Memory capacity (RDIMM) | 256 GB |
| Memory capacity (UDIMM) | 128 GB |
| SAS/SATA drive bays per node | Twelve (12) SATA drives |
| PCI-E slots per node | 3x PCI-E 3.0 x8 low-profile/micro |
This manual is written for professional system integrators and PC technicians.
Each node contains eight hot-swap 2.5" SAS/SATA HDD drive bays and four hot-swap 2.5" SATA HDD drive bays.
The system supports up to 512 GB of LRDIMM ECC memory per node.
