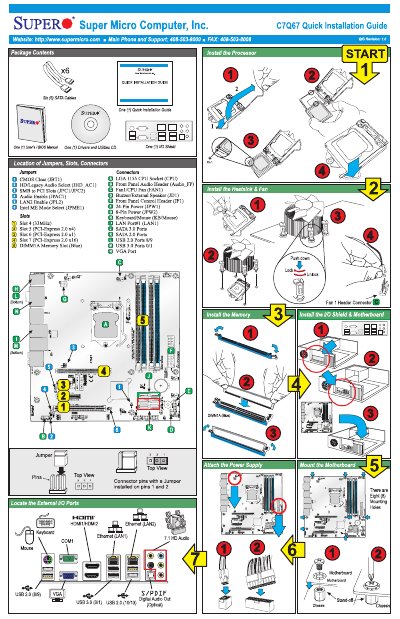

A quick installation guide for the Supermicro C7Q67 server board, covering safety warnings, component installation steps, and airflow management.
This document serves as a quick installation guide for the Supermicro C7Q67 server board, chassis, and installed peripherals. It outlines essential safety instructions regarding electrical hazards, electrostatic discharge (ESD), and proper handling of hot components to prevent injury or equipment damage.
The guide provides step-by-step procedures for installing key components such as the processor, heat sink, fan, system memory, I/O shield, motherboard, and power supply. It also details site selection requirements, including environmental conditions like ventilation and grounding, to ensure optimal operation. This manual is written in Chinese.
You must turn off the system, disconnect all AC power cords and telecommunication lines, and retain all screws when removing access covers.
Perform procedures at an ESD workstation, wear an antistatic wrist strap attached to chassis ground, or handle boards only by their edges on a grounded surface.
