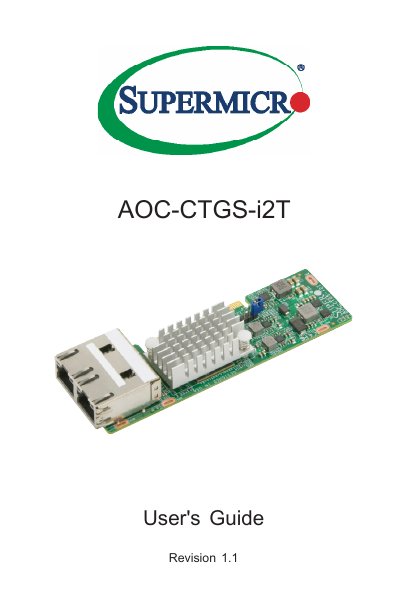

This user guide covers the installation, configuration, and driver setup for the Supermicro AOC-CTGS-i2T dual-port 10Gbase-T add-on card.
The Supermicro AOC-CTGS-i2T is a microLP form factor, dual-port 10Gbase-T controller designed for compact MicroCloud and Twin series servers. Based on the Intel X550 controller, it supports high bandwidth networking features including jumbo frames up to 9KB, energy-efficient Ethernet (EEE), and network virtualization offloads such as VXLAN and NVGRE.
This manual provides instructions for system integrators and IT technicians regarding hardware installation, driver installation on Windows, Linux, and FreeBSD systems, and technical specifications. It also includes information on compliance standards and operating environments.
| Controller Type | Intel X550 10GbE controller with integrated 10GBase-T copper PHYs |
|---|---|
| Form Factor | MicroLP Form Factor |
| Interface | PCI-E 3.0 x4 (8GT/s) |
| Connectors | Dual RJ45 connectors with speeds up to 10Gb/s per port |
| Jumbo Frame Support | up to 9KB |
| Virtualization Support | PCI-SIG SR-IOV (64 VFs) |
Yes, it supports Network Virtualization Offloads including VXLAN and NVGRE.
The AOC-CTGS-i2T uses a MicroLP Form Factor.
Each of the two integrated interfaces operates at speeds up to 10Gb/s.
The card supports jumbo frames up to 9KB.
