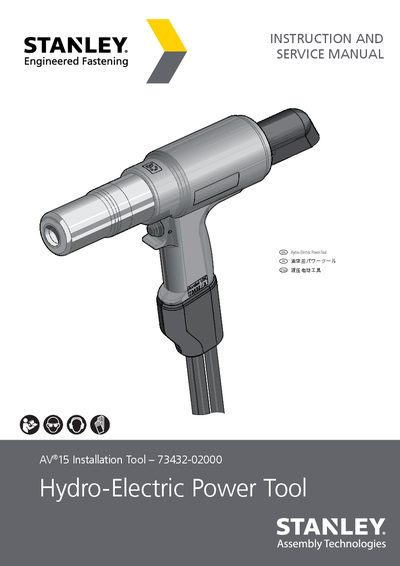

The Stanley AV15 Installation Tool service manual provides safety rules, specifications, operating instructions, and maintenance procedures for the…
This manual covers safety definitions, hazard warnings, and required personal protective equipment such as impact‑resistant eye protection, gloves, and hearing protection. It also details the tool's intended use, hydraulic pressure limits, and environmental precautions for safe operation in industrial settings.
Technical specifications, including force, pressure, stroke, weight, and required hydraulic oil, are listed, followed by step‑by‑step operating instructions for installing AVBOLT® and AVDELOK® XT fasteners. The document also outlines daily, weekly, and annual servicing procedures, part lists, safety data sheets, and fault‑diagnosis guidelines.
| Pull Force | 80.0 kN |
|---|---|
| Push‑Off Force | 37.0 kN |
| Maximum Pull Pressure | 510 bar |
| Maximum Return Pressure | 200 bar |
| Piston Stroke | 32.0 mm |
| Weight (without nose) | 4.5 kg |
| Hydraulic Oil | Enerpac® Hydraulic Oil – HF-95 |
| Maximum Operating Hydraulic Supply | 550 bar (8000 PSI) |
The operating hydraulic supply must not exceed 550 bar (8000 PSI).
Use Enerpac® Hydraulic Oil – HF‑95 as specified in the tool specifications.
