This document describes the features and applications of the 3874K series single color flush mount round shape type products, as well as the dimensions, operating temperature range, and dominant wavelengths of the products. The product is lead-free soldering compatible and RoHS compliant, and is available in different colors with a half intensity angle. The product can be installed through TTW soldering and manual soldering.

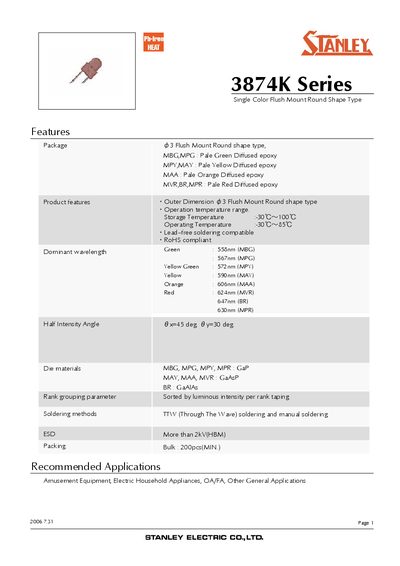

This document is a technical datasheet for the Stanley Electric 3874K Series of single-color flush-mount round LEDs. It details various package colors including pale green (MBG), pale yellow (MPY), orange (MAA), red (MVR, BR), and others, specifying materials such as GaP and GaAsP.
| Operating Temperature Range | -30°C to +85°C |
|---|---|
| Storage Temperature Range | -30°C to +100°C |
| Dominant Wavelength (Green MBG) | 558nm |
| Die Material (Pale Yellow MPY) | GaAsP |
| ESD Rating | More than 2kV(HBM) |
The LEDs are suitable for amusement equipment, electric household appliances, OA/FA, and other general applications.
The device operates between -30°C and +85°C.
