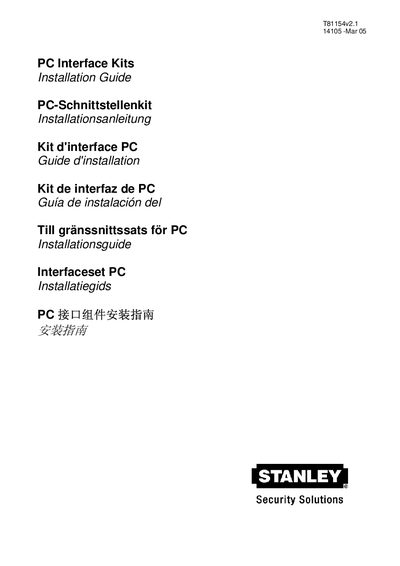

This document is the installation guide for the PC Interface Kit, which provides instructions and materials needed to install the kit.
The PC Interface Kit provides two main functions: it enables a PC running Stanley access control software to read ID devices such as cards or tokens, and it optionally offers direct communication between the PC and a controller. The guide explains how to verify that all required components are present, disconnect power, and open the unit safely.
Detailed connection instructions cover linking the kit to a Desktop Reader, a Wiegand Interface, the PC serial port, and a line driver, as well as power‑supply requirements and cable specifications. The document also includes contact information for Stanley Security Solutions support offices worldwide.
| Power supply voltage | 100‑240 V, 1.0 A |
|---|---|
| Jumper setting for Wiegand interface | J1 closed |
The power supply must accept 100 V to 240 V at up to 1.0 A.
