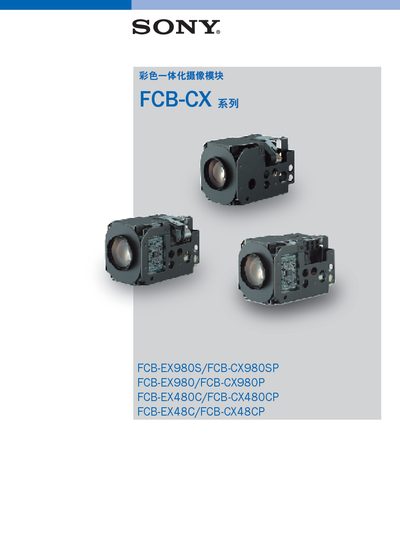

The Sony FCB‑CX series integrated camera module manual describes features, specifications, and operation for security and traffic monitoring applications.
The Sony FCB‑CX series is an integrated color camera module featuring a high‑performance 26× optical zoom lens, advanced privacy‑area masking, electronic flip, alarm and image‑freeze functions. It uses a 1/4‑inch Super HAD™ or EXvie W HAD™ CCD for high sensitivity and low‑light performance, with options for 18× or 26× optical zoom and up to 312× total zoom.
The manual provides detailed specifications, wiring and interface information (including VISCA TTL serial control up to 38.4 kb/s), environmental limits, power consumption, and guidance for custom development of features such as privacy masking (up to 24 blocks) and alarm output. This manual is written in Chinese.
| Effective pixels | ≈44万像素 (FCB‑CX480CP) |
|---|---|
| Optical zoom | 26× |
| Digital zoom | 12× |
| Total zoom | 312× |
| Minimum illumination | 0.7 Lx (typical) |
| Power consumption (motor off) | 1.6 W |
The FCB‑CX980SP module provides a 26× optical zoom lens.
Yes, it supports advanced privacy‑area masking with up to 24 mask blocks.
