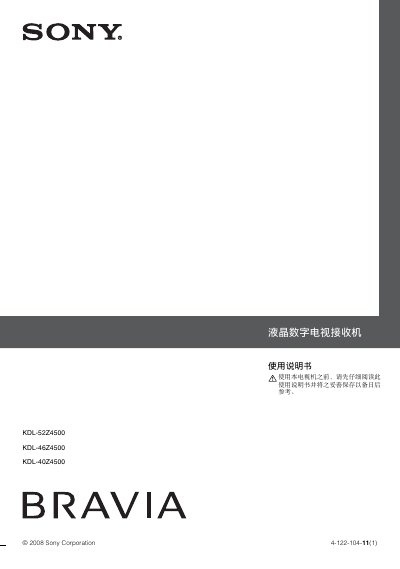

This is the user manual of Sony KDL-52Z4500 KDL-46Z4500 KDL-40Z4500 Liquid Crystal Digital TV Receiver, introducing the features and characteristics of the product, installation, use, connection, setting and other information
This manual provides step‑by‑step instructions for installing, configuring and using Sony KDL‑52Z4500, KDL‑46Z4500 and KDL‑40Z4500 LCD digital televisions. It includes safety guidelines, wiring diagrams, remote‑control functions, network setup, and troubleshooting tips.
The document also lists detailed technical specifications such as screen size, resolution, power consumption, input ports and audio output, helping users understand the capabilities of each model and ensure proper installation and operation. This manual is written in Chinese.
| Screen size (diagonal) | 132 cm (52 in) / 117 cm (46 in) / 102 cm (40 in) |
|---|---|
| Native resolution | 1920 × 1080 pixels |
| Power consumption (operating) | 320 W / 283 W / 235 W |
| Standby power consumption | 0.20 W (20 W when fast‑start on) |
| HDMI inputs | 3 (HDMI 1‑3) |
| Audio output power | 8 W + 8 W, 11 W (bass speaker) |
| Network interface | LAN 10BASE‑T/100BASE‑TX |
| USB ports | USB (type‑A) for media playback |
The TV provides three HDMI inputs, labeled HDMI 1, HDMI 2 and HDMI 3.
Use a 220 V AC power source at 50 Hz.
The standby power consumption is 0.20 W (or 20 W when the fast‑start setting is enabled).
