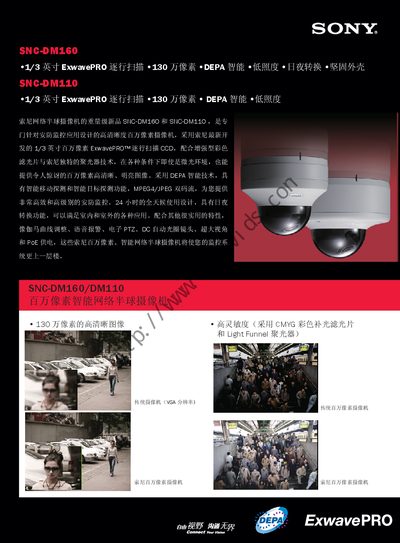

The SNC-DM160 and SNC-DM110 megapixel network dome cameras use Sony's latest 1/3-inch megapixel ExwavePRO progressive scan CCD, with enhanced color filters and Sony's unique condenser lens technology, which can provide surprisingly clear and bright megapixel images even in low-light environments under various conditions. DEPA Intelligent Technology has intelligent motion detection and intelligent target detection functions, MPEG4/JPEG dual streams, and provides you with highly efficient and high-level security monitoring. 24-hour all-weather design, with day and night conversion function, can meet the needs of various applications in indoor and outdoor environments. With other very practical features, such as gamma curve adjustment, voice alarm, electronic PTZ, DC auto iris lens, super wide angle and PoE power supply, these Sony megapixel, intelligent network dome cameras will take your surveillance system to a higher level.
The manual describes Sony's half‑ball camcorders SNC‑DM160 and SNC‑DM110, which use a 1/3‑inch ExwavePRO CCD sensor delivering up to 1.25 MP resolution. Features include DEPA intelligent technology, low‑light performance, day/night switching, PoE power, and PTZ support for security applications.
Technical specifications cover imaging performance, video and audio formats, network interfaces, power consumption, dimensions, and environmental ratings. The document also lists supported operating systems and optional accessories. This manual is written in Chinese.
| Effective pixels | 1,250,000 (1296 × 966) |
|---|---|
| Minimum illumination (color) | 0.8 lx, 50 IRE, F1.3, AGC 30 dB |
| Minimum illumination (B/W) | 0.15 lx, 50 IRE, F1.3, AGC 30 dB |
| JPEG resolution | 1280×960, 960×720, 768×576, 640×480, 384×288, 320×240 |
| MPEG‑4 resolution | 640×480 at 30 fps |
| Audio codec | G.711 / G.726 (40, 32, 24, 16 kb/s) |
| Network interface | 10Base‑T/100Base‑TX (RJ‑45) |
| Maximum power consumption | 15 W |
| Weight | 1.4 kg (SNC‑DM160) / 0.78 kg (SNC‑DM110) |
| Dimensions | 166 × 119 mm (SNC‑DM160) / 140 × 118 mm (SNC‑DM110) |
| PoE support | IEEE 802.3af/at, 24 V / DC 12 V |
The camera needs at least 0.8 lx, 50 IRE, F1.3 with AGC 30 dB for color imaging.
Yes, it supports PoE (IEEE 802.3af/at) with 24 V or DC 12 V supply.
Up to ten client terminals are supported.
JPEG images up to 15 fps at 1280×960 and MPEG‑4 video up to 30 fps at 640×480 are supported.
