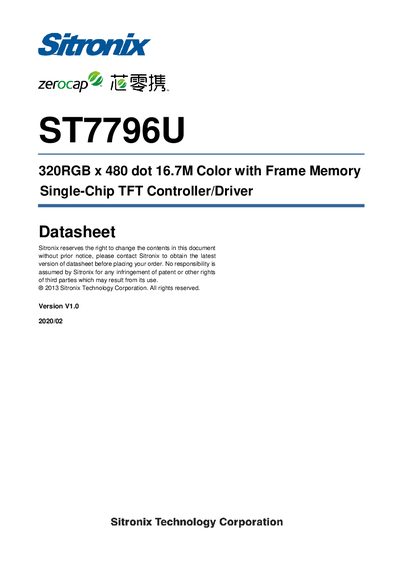

This datasheet details the ST7796U, a single-chip TFT controller and driver with 320x480 resolution, 16.7M color support, and frame memory for LCD applications.
The ST7796U is a single-chip controller and driver designed for 262K-color graphic type TFT-LCDs. It integrates 960 source lines and 480 gate lines driving circuits, along with an on-chip frame memory of 320x480x18 bits. The device supports direct connection to external microprocessors via 8/9/16/18-bit parallel interfaces, SPI, and MIPI interfaces, allowing for display data RAM read/write operations without an external clock to minimize power consumption.
| Display Resolution | 320 (H) x 480 (V) |
|---|---|
| Frame Memory Size | 320 x 480 x 18-bit = 2,764,800 bits |
| Source Outputs | 320 RGB Channels |
| Gate Outputs | 480 Channels |
| I/O Voltage Range | 1.65V ~ 3.3V |
| Digital Circuit Voltage | 2.5V ~ 3.3V |
| Analog Circuit Voltage | 2.5V ~ 3.3V |
| Operating Temperature Range | -30ºC to +85 ºC |
The ST7796U supports a display resolution of 320 pixels horizontally and 480 pixels vertically.
Yes, it includes an on-chip frame memory of 320 x 480 x 18 bits.
