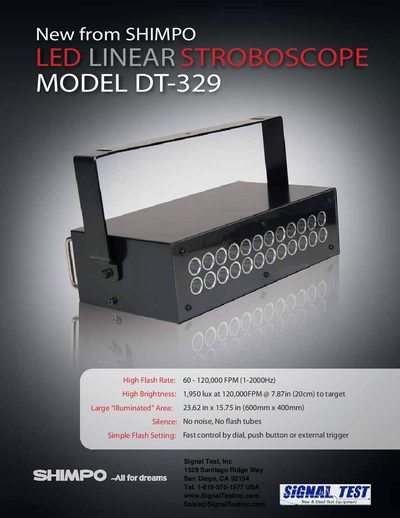

The SHIMPO DT-329 LED Linear Stroboscope delivers high‑brightness, silent operation with flash rates up to 120,000 FPM.
The SHIMPO DT-329 LED Linear Stroboscope provides high‑brightness LED illumination for applications such as web printing, vibration analysis, audio research, and rolling‑mill inspection. It offers a wide flash‑rate range (60‑120,000 FPM) with precise control via dial, push‑button, or external trigger, and features a back‑lit LCD for easy monitoring.
The device operates silently, requires an AC 100‑240 V power supply, and includes external input/output connectors for daisy‑chain and trigger configurations. Its compact dimensions and 11 lb weight make it easy to mount in test environments.
| Flash Rate Range (High) | 60 – 120,000 FPM, 1 – 2,000 Hz |
|---|---|
| Illumination at Max Rate | 1,950 lux at 120,000 FPM @ 7.87 in (20 cm) |
| Power Supply | AC 100 V – 240 V, 50/60 Hz |
| Weight | 11 lb (5 kg) |
| Operating Temperature | 32 °F – 95 °F (0 °C – 30 °C) |
The DT-329 can flash up to 120,000 flashes per minute.
No, it operates silently because it uses LEDs instead of xenon flash tubes.
It requires an AC power source of 100 V to 240 V, 50/60 Hz.
It delivers 1,950 lux at a distance of 7.87 in (20 cm).
