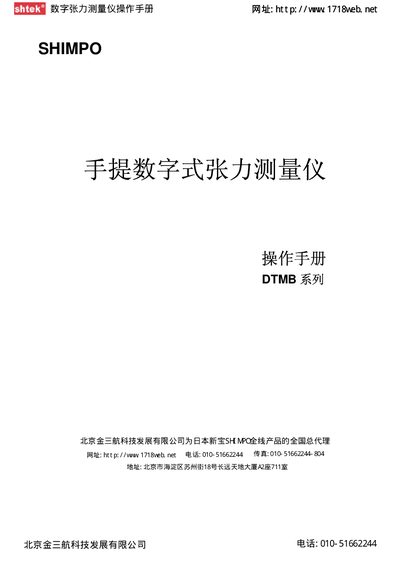

This manual introduces the basic operation methods of the DTMB series digital tension gauge, including the instrument's components, battery installation, and thickness adjustment methods, to help users use the instrument better.
This manual provides step‑by‑step instructions for using the Shimpo DTMB series digital tension measuring instrument. It includes details on battery installation, thickness adjuster use, built‑in memory functions, and how to set measurement conditions.
The document also lists technical specifications such as measurement range, RS‑232C output parameters, dimensions, weight, power options, and operating temperature, helping users configure and maintain the instrument correctly. This manual is written in Chinese.
| Measurement range | 0.0–200 gf |
|---|---|
| Measurement unit | gf (kgf) or lb |
| RS‑232C baud rate | 4800 bps |
| Display | 4‑digit LCD, 11.5 mm character height |
| Dimensions (W×D×L) | 76 mm × 46 mm × 275 mm |
| Weight | ≈650 g |
| Power source | 4 × AA alkaline batteries (≈20 h) or optional AC adapter |
| Operating temperature | 0–45 °C |
Press and hold the two keys simultaneously until the display shows "0" or "0.0" to complete the zero calibration.
It indicates low battery voltage; data stored in memory may be lost if the batteries are removed.
