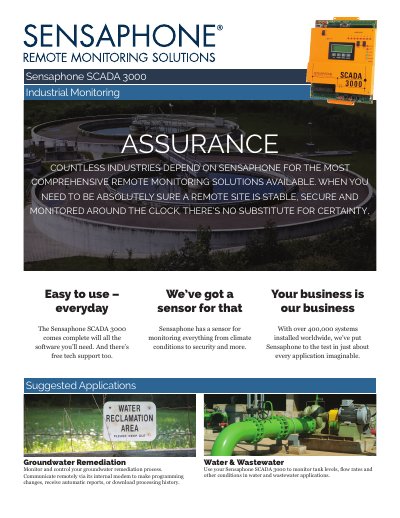

A brochure for the Sensaphone SCADA 3000 industrial monitoring system, detailing its applications in groundwater and wastewater management, features like…
The Sensaphone SCADA 3000 is an industrial monitoring system designed for remote site stability, security, and round-the-clock monitoring. It supports a wide range of applications including groundwater remediation, water and wastewater management, and general climate or security monitoring. The system comes complete with software for real-time screen building, program editing, alarm functions, and data analysis.
| Number of Input Zones (Standard) | 16 |
|---|---|
| Maximum I/O Points (Expandable) | 144 |
| Input Types Supported | N.O./N.C. contacts, 10K Thermistors, 4-20mA Transducers |
| Number of Relay Outputs (Standard) | 8 |
| Relay Rating | 2A 120VAC/ 2A 30VDC Maximum |
| LCD Display Resolution | N/A |
| Operating Temperature Range | 32° to 158°F | 0° to 70°C |
| Operating Humidity Range | 0–90% RH non-condensing |
Yes, capabilities can be expanded by adding additional modules for more relay channels or 4-20mA analog output channels.
The system accepts Normally Open (N.O.) or Normally Closed (N.C.) contacts, 10K Type Sensors (thermistors), and 4-20mA Transducers.
A hard-wired power supply with an available battery-backup system is included.
