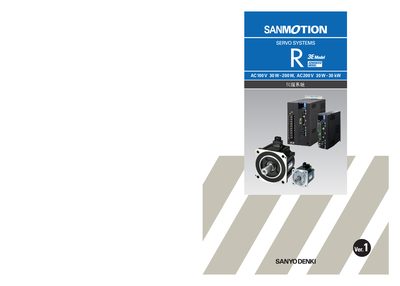

The SANMOTION R 3E Model servo system catalog details drivers, motors, features, specifications and typical industrial applications.
The SANMOTION R 3E Model series offers a wide range of high‑precision AC servo drives and motors for robots, machine tools, injection molding, food packaging and other industrial equipment. The catalog presents product lines, key features such as EtherCAT, CANopen, built‑in positioning and multi‑axis capabilities, and safety functions meeting UL, c‑UL, EN and SIL3 standards.
Detailed sections list standard model families, setup modes, optional accessories, linear servo options and replacement information. Technical data include output power from 30 W to 30 kW, motor flange sizes from 40 mm to 275 mm, and driver current ratings from 10 A up to 600 A, helping users select the right configuration for their application. This manual is written in Japanese.
| Output capacity | 30 W – 30 kW |
|---|---|
| Power supply voltage | AC 100 V, AC 200 V |
| Motor flange size range | 40 mm – 275 mm |
| Driver current ratings | 10 A – 600 A |
It supports AC 100 V and AC 200 V input voltages.
The system can deliver up to 30 kW of output power.
It offers EtherCAT and CANopen interfaces, as well as RS‑485 and pulse I/O options.
The products meet UL, c‑UL, EN, KC, RoHS and SIL3/IEC61508 safety standards.
