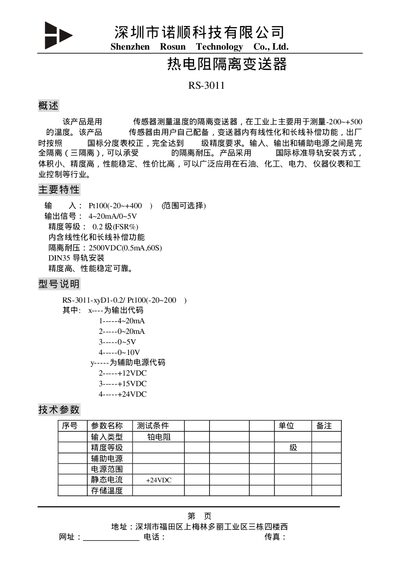

The Rosun RS-3011 Pt100 isolation transmitter manual provides specifications, wiring diagrams, and installation instructions for temperature measurement…
The RS-3011 is a Pt100 isolation transmitter designed for industrial temperature monitoring. It measures temperatures from -200 °C to +500 °C, offers 4–20 mA or 0–5 V output signals, and provides 2500 VDC isolation in compliance with DIN35 standards. The device features high accuracy (0.2 % FSR) and supports multiple power supply options (12 V, 15 V, 24 V).\n\nThis manual includes the technical parameters, wiring diagrams, pin assignments, and installation guidelines. It details the electrical characteristics, pin functions for Pt100 inputs, and recommended connection methods, helping users set up and operate the transmitter safely and correctly. This manual is written in Chinese.
| Temperature measurement range | -200 °C to +500 °C |
|---|---|
| Output signal | 4–20 mA / 0–5 V |
| Isolation voltage | 2500 VDC |
| Power supply options | 12 V, 15 V, 24 V |
It measures temperatures from -200 °C to +500 °C.
The transmitter provides either a 4–20 mA current loop or a 0–5 V voltage output.
The device is rated for 2500 VDC isolation.
