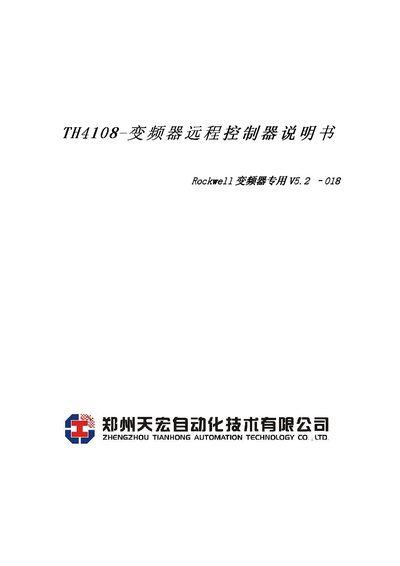

The Rockwell TH4108-M/A remote controller manual explains appearance, functions, wiring, and operation for controlling variable frequency drives.
This manual introduces the TH4108-M/A remote controller for variable frequency drives, describing its physical layout, key features, and the RS‑485 communication capabilities that allow remote start, stop, speed control, and direction changes. It also details the optional wireless module and the ability to connect external I/O buttons.
The document provides wiring diagrams for both M‑type and A‑type units, step‑by‑step instructions for setting parameters, and safety guidelines for cable length, grounding, and lightning protection. Users can configure communication settings, address multiple drives on a bus, and adjust operation modes such as master‑control or listening mode. This manual is written in Chinese.
| Power supply voltage (M type) | 9‑36 V |
|---|---|
| Power supply voltage (A type) | 220 V AC |
| Maximum communication distance | 1200 m |
| Default baud rate | 9600 bps |
| External I/O ports | 4 |
| Dimensions (M type) | 48 × 96 × 75 mm |
| Dimensions (A type) | 80 × 160 × 148 mm |
Set the serial port baud rate (C302) to match the controller’s C07 setting; options include 4800, 9600, 19.2 k, and 38.4 k bps.
The controller can communicate up to 1200 meters over RS‑485.
