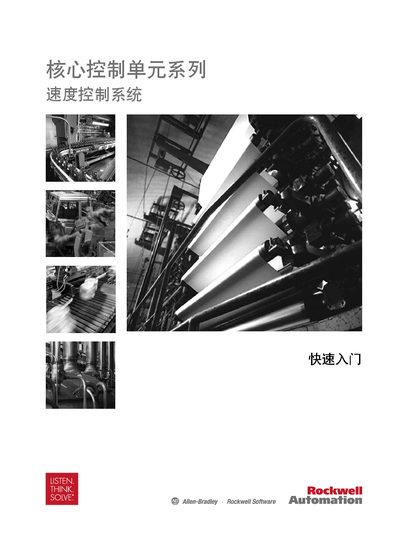

This document provides a quick start guide for the Speed Control System of Rockwell Automation's Core Control Unit series. It explains in detail the differences between solid-state devices and electromechanical devices, emphasizing the diversity of solid-state device applications and the responsibility of technical personnel. In addition, it provides installation and maintenance safety guidelines and warns of the risks associated with the use of solid-state control equipment.
The QuickStart Guide introduces the Core Control Unit Series Speed Return control system, outlining its main functions and the basic steps required to get the system up and running. It is intended for engineers and technicians who need a fast start to installation and commissioning.
The guide covers safety information, wiring diagrams, configuration procedures, and basic troubleshooting tips. Additional detailed documentation and technical support can be accessed through Rockwell Automation's support website.
Technical support is available at Rockwell Automation's support website.
The document number is CC‑QS002A‑ZH‑P.
