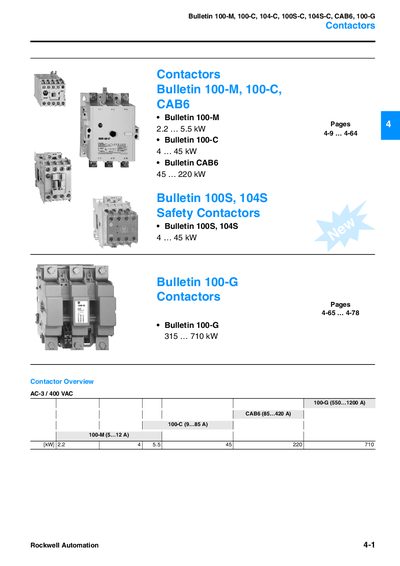

This document introduces the features and characteristics of Rockwell Automation's 100-M, 100-C, 104-C, 100S-C, 104S-C, CAB6, and 100-G contactors.
The bulletin presents the design, safety features, and performance of the 100 series and CAB6 contactors. It describes positive guidance of contacts, high contact reliability, and compact construction that meet IEC 60947‑5‑1 standards.
Additional sections cover auxiliary contact blocks, mechanical interlocks, dimensions, and electrical specifications for each model, along with a range of accessories such as timing modules, suppressor modules, and interface units.
| Voltage rating | 400 VAC (AC‑3) |
|---|---|
| Current range for CABG | 85 A – 420 A |
| Maximum interface current (CAB6‑El) | 15 mA |
| Switching of running squirrel‑cage motors | AC‑3 |
| Rated operating current for 100‑G550 | 220 A |
Dual connection technology positions the coil either below (for starters with circuit breakers) or above (for starters using the Bulletin 193‑E overload relay).
The interface can handle up to 15 mA of current.
The CAB6 contactors operate over a wide voltage range, e.g., 208 V – 277 V AC.
