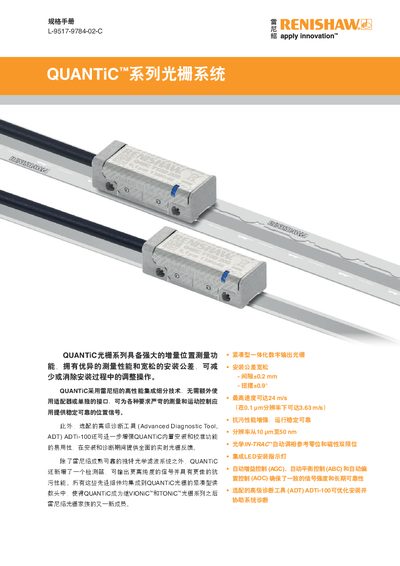

The Renishaw QUANTiC L-9517-9784-02-C grating system specification manual details features, dimensions, electrical connections, and optional diagnostic tools.
The QUANTiC series grating system provides high‑performance incremental position measurement with relaxed installation tolerances and integrated digital output. It uses Renishaw’s high‑performance integrated subdivision technology and includes a compact read‑head that incorporates an advanced detector for improved signal purity and anti‑contamination performance.
The manual lists mechanical dimensions, electrical specifications, cable options, and signal output configurations. It also describes the optional Advanced Diagnostic Tool (ADT) ADTi‑100 and its software interface for remote calibration, signal optimization, and real‑time feedback during installation and diagnostics. This manual is written in Chinese.
| Maximum speed | 24 m/s |
|---|---|
| Resolution range | 10 µm – 50 nm |
| Power supply | 5 V ±5%/ +10% |
| Typical current consumption | 200 mA |
| Operating temperature | 0 °C – +70 °C |
| IP protection rating | IP40 |
| Acceleration capability | 400 m/s² (3‑axis) |
| Shock resistance | 500 m/s², 11 ms, ½ sine (3‑axis) |
The system can reach up to 24 m/s at the highest setting.
It operates from a 5 V DC supply with a tolerance of –5% to +10% and typically draws 200 mA.
The optional Advanced Diagnostic Tool (ADT) ADTi‑100 can be added for enhanced installation and real‑time feedback.
The maximum cable length is 3 m, with longer extensions depending on cable type and clock speed.
