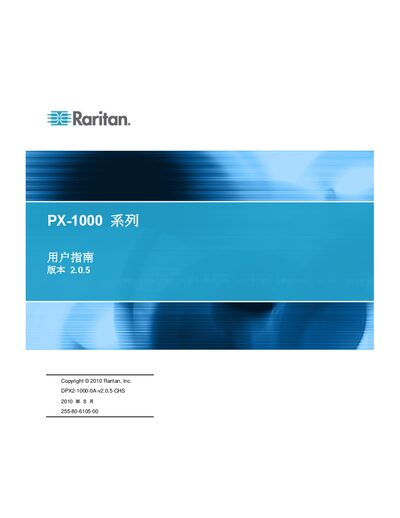

The Raritan PX-1000 Series User Guide provides safety warnings, installation steps, configuration, and management instructions for the PDU.
This guide covers safety principles and warnings that must be read before installing or using the PX-1000 series power distribution unit, including proper grounding, fuse protection, and restrictions on connecting inductive loads. It also details rack‑mount installation options, such as using two lock pins or an L‑shaped bracket.
The manual explains how to configure the device via the Dominion PX web interface, manage users and roles, set up power interfaces and environmental sensors, perform firmware upgrades, and use the command‑line interface for advanced tasks. Troubleshooting, event logging, and network configuration are also included. This manual is written in Chinese.
| Maximum operating temperature | 50°C – 60°C |
|---|---|
| RJ‑12 pin 1 voltage | +12 V (500 mA, fuse protected) |
The device is rated for a maximum ambient temperature between 50 °C and 60 °C, depending on the model and certification.
Yes, the PX‑1000 series can be rack‑mounted using either two lock pins or an L‑shaped bracket with a lock pin.
