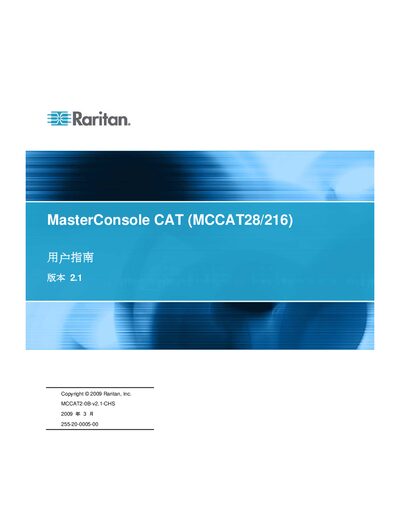

The Raritan MCCAT2-0B-v2.1 User Guide provides product overview, installation steps, operation instructions, system settings, firmware upgrade, and…
This guide introduces the MCCAT2-0B-v2.1 KVM switch, its components such as the MCCAT switch unit, user workstation, and MCIM interface module, and outlines the product’s features and packaging. It also details the supported resolutions and environmental requirements.
Installation procedures cover rack mounting, cable management, front and rear mounting, and basic setup. Operational sections describe the OSD interface, channel management, two‑layer system configuration, user account handling, and firmware upgrade steps. The document concludes with system settings, troubleshooting tips, and a full specifications table. This manual is written in Chinese.
| Supported resolutions | 640x350 (70,85 Hz), 640x400 (85 Hz), 640x480 (60,67,72 Hz), 720x400 (70,85 Hz), 800x600 (56‑100 Hz), 1024x768 (60‑100 Hz), 1152x864 (75 Hz), 1280x960 (60,85 Hz), 1280x1024 (60,75,85 Hz), 1600x1200 (60 Hz) |
|---|
Do not use two‑core power cords, verify polarity and grounding of the AC outlet, and ensure the equipment is connected to a grounded power source.
