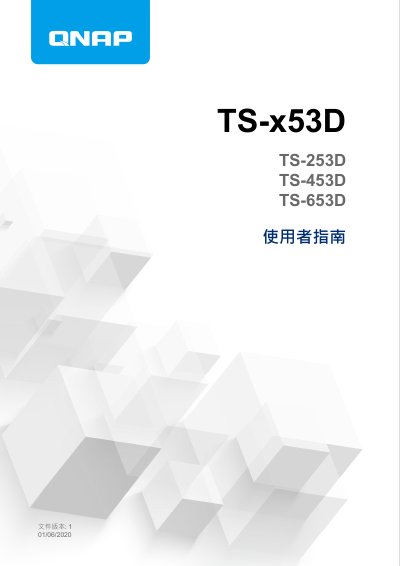

The QNAP TS-x53D User Manual provides hardware specs, installation steps, basic operation, and troubleshooting for the TS-x53D NAS.
The QNAP TS‑x53D is a network‑attached storage device powered by an Intel Celeron J4125 processor, offering 2.5 GbE networking, HDMI 2.0 output, and up to three PCIe expansion slots. It is available in 2‑bay, 4‑bay, and 6‑bay configurations, each with specific power‑supply ratings and dimensions.
The manual walks users through hardware installation, memory upgrades, adding expansion cards, and configuring the QTS operating system via Qfinder Pro, Cloud Key, or HDMI. It also covers basic operation such as power, reset, single‑button backup, LED indicators, and provides a troubleshooting section for common issues like hot‑swap drive failures. This manual is written in Chinese.
| Processor | Intel Celeron J4125, 2.0 GHz (up to 2.7 GHz turbo) |
|---|---|
| Memory | 4 GB DDR4, expandable to 8 GB |
| Hard drive bays | 2, 4, or 6 bays depending on model |
| Power supply | 65 W (2‑bay), 90 W (4‑bay), 120 W (6‑bay) |
The TS‑x53D is offered in 2‑bay, 4‑bay, and 6‑bay models.
The device supports up to 8 GB of DDR4 RAM (2 × 4 GB modules).
