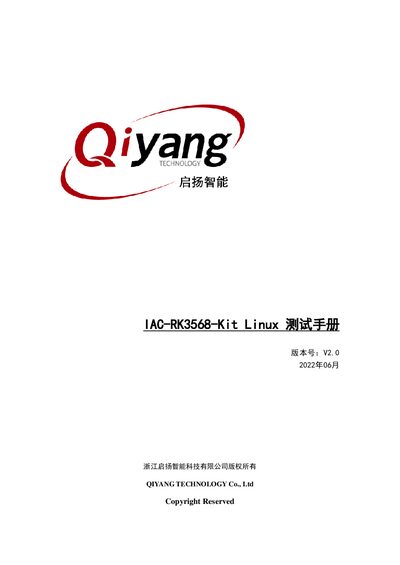

Qiyang IAC-RK3568-Kit Test Manual

About this manual

This manual provides step‑by‑step procedures to verify the functionality of the IAC‑RK3568‑Kit development board. It includes preparation instructions, test environment setup, and detailed test cases for each hardware interface.

The document also lists required test software locations, hardware connections, and expected results, helping users quickly validate the board before deployment. This manual is written in Chinese.

What's inside

• Reading Instructions
• Preparation
• Display Test
• Touch Test
• Serial Port Test
• CAN Test
• USB Test
• Ethernet Test
• Watchdog Test
• Test Summary

Specifications

Frequently asked questions

How do I enter the U‑Boot environment on the IAC‑RK3568‑Kit?

Power on the board and press Ctrl+C within 3 seconds to access the U‑Boot prompt.

Where are the test programs located on the board?

All test programs are stored in the /usr/test directory on the board.

What is the model of the LVDS touch screen used with the kit?

The kit uses a 7‑inch LVDS touch screen, model QY‑HJ070NA‑V1.2, with a resolution of 1024×600.
