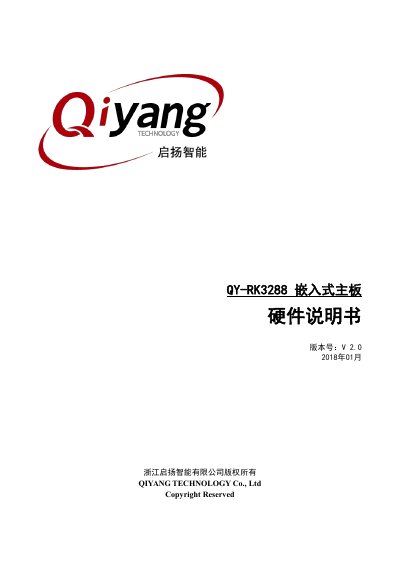

This manual provides a complete overview of the QY-RK3288 embedded board, including its hardware interfaces, system composition, and recommended usage. It describes the board's processor, memory, storage, power management, and supported operating systems.
The document also contains detailed pin definitions, connector functions, performance specifications, mechanical dimensions, and software description for Android development, along with warranty and support information. This manual is written in Chinese.
| Processor | RK3288 Cortex‑A17 quad‑core 1.8 GHz |
|---|---|
| GPU | Mali‑T764 with AFBC support |
| RAM | 2 GB DDR3 |
| Flash Storage | 8 GB eMMC |
| Display Interfaces | RGB, Dual LVDS, Dual MIPI‑DSI, eDP up to 3840×2160 |
| Power Input | +12 V (supports +9 V to +16 V) |
| Operating Temperature | -10 °C to +60 °C |
It uses a Rockchip RK3288 processor with a quad‑core Cortex‑A17 CPU running up to 1.8 GHz.
The board supports up to 3840 × 2160 (4K) resolution via HDMI 2.0, LVDS, MIPI‑DSI or eDP interfaces.
The board is equipped with 2 GB of DDR3 RAM.
It requires a +12 V supply and can operate with voltages from +9 V to +16 V.
