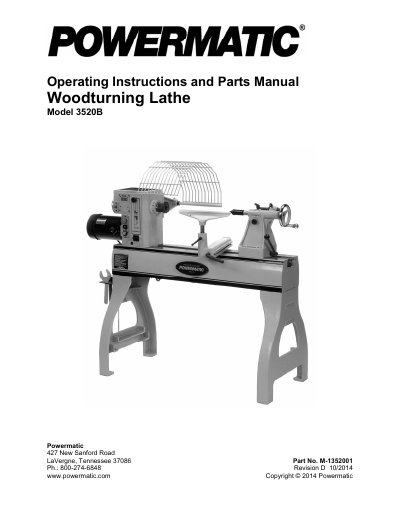

Operating instructions and parts manual for the Powermatic 3520B woodturning lathe, covering safety, assembly, operation, maintenance, and troubleshooting.
This document serves as the official operating instructions and parts manual for the Powermatic Model 3520B Woodturning Lathe. It provides comprehensive guidance on safe operation, including specific warnings regarding personal protective equipment, proper attire, and workshop environment setup to prevent injury.
The guide details the complete lifecycle of the machine, from unpacking and assembly (including optional accessories like bed extensions) to daily adjustments such as spindle play checking and belt alignment. It also includes sections on maintenance procedures, troubleshooting common issues, a list of recommended lathe speeds based on workpiece diameter, and detailed parts lists for headstock and stand assemblies.
| Warranty Period (General) | Varies by product |
|---|
The warranty covers only the initial purchaser of the product from the date of delivery.
The machine is designed for wood; using it for metal, plastics, or other materials may void the warranty.
Users must wear approved safety glasses/face shields and ear protectors during extended periods.
