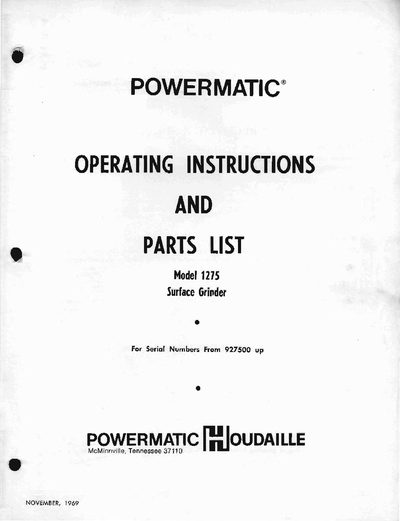

Powermatic 1275 Surface Grinder Operating Instructions and Parts List

About this manual

This manual serves as a guide for owners and operators of the Powermatic Model 1275 Surface Grinder. It provides essential information on receiving, mounting, inspecting, and operating the machine safely to ensure maximum life and efficiency. The document includes specific instructions for setup, such as securing the machine to a solid foundation and checking motor connections before operation.

What's inside

• Receiving & Set Up
• Safety Rules
• Machine Specifications
• Motor & Wiring
• Spindle Details
• Table Movement
• Saddle (Cross Feed)
• Vertical Movement
• Wheel Mounting
• Magnetic Chuck

Specifications

Frequently asked questions

What safety gear is required when operating the grinder?

Always wear safety glasses or eye protection.

How should the grinding wheel be inspected before mounting?

Inspect the grinding wheel by performing a "ring test" before mounting.

What is the minimum speed rating for the grinding wheel?

The grinding wheel must be rated for 3600 RPM minimum.
