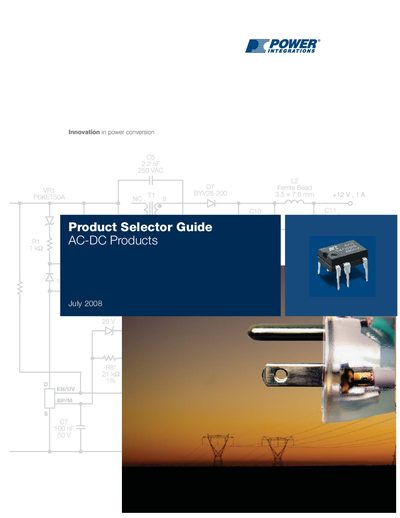

A guide that helps designers select Power Integrations AC‑DC converter products and provides design examples and specifications.
The Product Selector Guide presents Power Integrations' AC‑DC converter families, including LinkSwitch, TinySwitch, PeakSwitch and TOPSwitch series. It outlines design simplification, EcoSmart energy‑saving technology, and key product features such as integrated MOSFET switches and fault protection.
The guide also supplies IC product tables, design examples, and a list of supporting design tools (data books, application notes, PI Expert software, reference designs) to aid engineers in creating efficient power supplies for a wide range of applications.
| EcoSmart standby power reduction | up to 95 % |
|---|---|
| TOPSwitch‑HX maximum continuous power | 333 W |
EcoSmart technology dramatically reduces standby and no‑load energy waste by up to 95 % in Power Integrations AC‑DC converters.
The support kit includes a Data Book, Design Guide, Application Notes, Data Sheets, Design Ideas, PI Expert software, Design Example Reports and Reference Design Reports.
