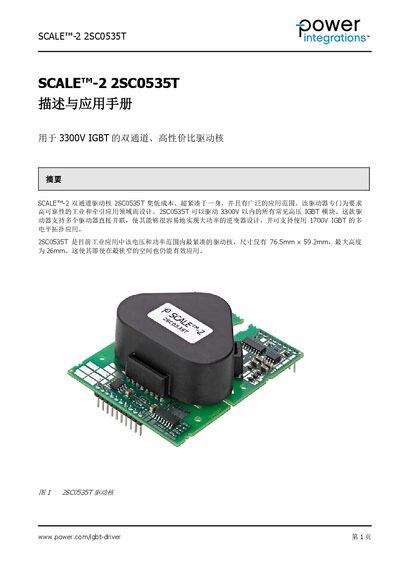

Power Integrations 2SC0535T Description and Application Manual
The manual provides an overview of the SCALE‑2 2SC0535T driver core, its features, and typical applications for high‑voltage IGBT modules up to 3300 V. It includes mechanical dimensions, pin definitions, recommended circuits, and operating mode details.
Additional sections cover dead‑time calculation, ordering information, and contact details for technical support worldwide.
Covers: Driver Overview · Mechanical Dimensions · Pin Definitions · Recommended Primary Interface Circuits · Operation Modes · Dead‑Time Settings
Latest Power integrations manuals
Power Integrations 2SC0535T Description and Application Manual
User Manual 20 pages · 1.3 MB · ENA description and application manual for the Power Integrations 2SC0535T dual‑channel IGBT driver core.
Which document do I need?
User Manual
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in Power integrations manuals
What supply voltage should be applied to the VCC pin?
The VCC pin requires a 15 V supply.
From: Power Integrations 2SC0535T Description and Application Manual
What is the pin pitch of the driver package?
The pins are spaced at 2.54 mm (100 mil).
From: Power Integrations 2SC0535T Description and Application Manual
