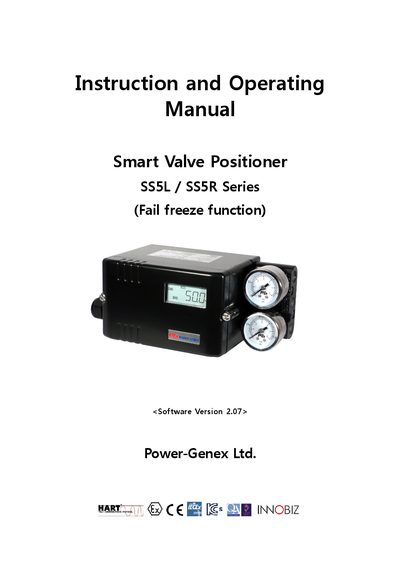

Instruction and operating manual for the Power-Genex SS5L / SS5R Series smart valve positioner, covering safety, installation, specifications, and…
The manual provides comprehensive guidance for the SS5L (linear) and SS5R (rotary) smart valve positioners, including safety instructions, part numbering, installation steps, electrical and air connections, parameter settings, and maintenance procedures. Detailed specifications such as input signal range, supply air pressure, operating temperature, and explosion‑proof ratings are listed.
Additional sections cover quick auto‑calibration, parameter flow diagrams, troubleshooting error codes, and a spare parts list. The document also includes dimensional drawings and contact information for Power‑Genex support.
| Input signal | 4‑20 mA @ 24 VDC |
|---|---|
| Supply air pressure | 1.4‑7.0 bar (20‑100 psi) |
| Operating temperature | -30 °C to +80 °C |
| Explosion‑proof / protection class | Intrinsically safe (Exia IIC T6) / IP66 |
| Weight | 2 kg |
The positioner accepts a 4‑20 mA input signal at 24 VDC.
It can operate from –30 °C up to +80 °C.
