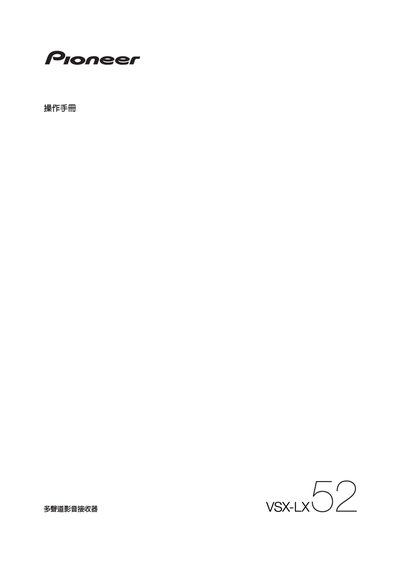

The Pioneer VSX-LX52_DFLXJ receiver user manual provides setup, operation, and technical specifications for the home‑theater AV receiver.
This manual guides users through unpacking, battery installation, and initial setup of the VSX-LX52_DFLXJ receiver, including speaker configuration, multi‑zone settings, and remote‑control programming. Detailed sections cover audio and video connections, HDMI setup, and advanced MCACC sound‑field calibration.
Technical specifications, safety warnings, and troubleshooting tips are included, along with a list of authorized distributors worldwide. The document is written in Chinese and spans 112 pages of detailed instructions and reference data.
| Maximum power output per channel (1 kHz, 6 Ω, THD 10 %) | 200 W |
|---|---|
| Rated power output (1 kHz, 6 Ω, THD 1 %) front speakers | 150 W+150 W |
| Signal‑to‑noise ratio | 103 dB |
| Frequency response | 5 Hz – 100 kHz |
| Dimensions (W × H × D) | 420 mm × 173 mm × 433 mm |
| Standby power consumption | 0.5 W |
| HDMI connector pins | 19‑pin (non‑DVI) |
Use the menu option on page 38 to switch the speaker impedance (6 Ω–8 Ω or below 8 Ω to 6 Ω).
The receiver consumes 0.5 W in standby mode.
It uses a 19‑pin HDMI connector that is not DVI compatible.
