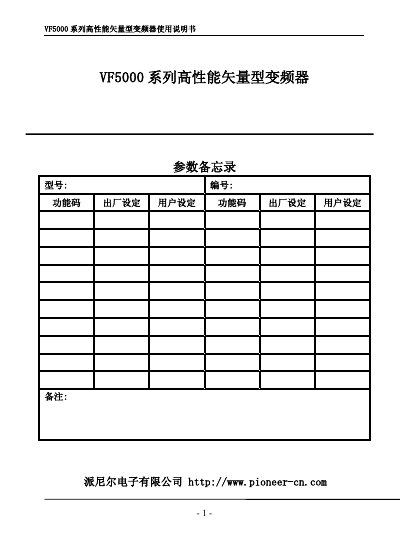

The Pioneer VF5000 high‑performance vector variable frequency drive user manual provides installation, operation, safety and maintenance instructions.
This manual covers all aspects of the Pioneer VF5000 series variable frequency drive, including product confirmation, safety precautions, installation, wiring, and detailed parameter settings. It is intended for installers, engineers, and designers who need to set up and operate the drive safely and efficiently.
The document also contains extensive troubleshooting guidance, regular maintenance procedures, and warranty information, ensuring long‑term reliable performance in applications such as textile, paper, food processing, and HVAC systems. This manual is written in Chinese.
| Input voltage | Single‑phase 220 V, Three‑phase 220 V / 380 V |
|---|---|
| Output voltage | 0 ~ 220 V / 0 ~ 380 V |
| Frequency range | 0 Hz ~ 400 Hz |
| Overload capacity (G type) | 150 % 1 min, 180 % 1 s, 200 % instant |
| Overload capacity (P type) | 120 % 1 min, 150 % 1 s, 180 % instant |
| IP protection rating | IP20 |
| Cooling fan replacement interval | 2 ~ 3 years |
Before wiring, confirm that the input power is disconnected, have a qualified electrical engineer perform the work, ensure reliable grounding, and avoid touching live terminals.
The cooling fan should be replaced every 2 to 3 years under normal operating conditions.
The VF5000 series has an IP20 protection rating.
