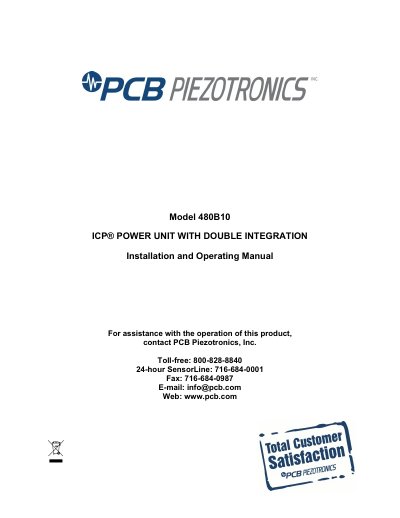

Installation and operating guide for the PCB 480B10 ICP Power Unit with double integration, covering setup, calibration, maintenance, and warranty.
This manual provides step‑by‑step instructions for installing and operating the PCB 480B10 ICP Power Unit with double integration. It includes safety cautions, wiring details, and recommended procedures for routine maintenance and cleaning.
The document also describes calibration practices, repair and return policies, warranty terms, and technical specifications such as frequency response, sensor excitation, battery requirements, and physical dimensions. Compliance information, including RoHS declarations, is provided at the end of the guide.
| High Frequency Response (Acceleration) | ≥ 100 kHz |
|---|---|
| Low Frequency Response (Acceleration) | ≤ 0.07 Hz |
| Electrical Sensor Excitation (Voltage) | 18 +1 -2 VDC |
| Battery (required) | 9 VDC (2 required) |
| Size (H × L × W) | 4.0 in × 1.5 in × 2.9 in |
| Weight | 9.75 oz (276.4 g) |
Contact your local distributor or PCB sales representative to obtain an RMA number and include it on the package and packing list.
Routine calibration is recommended annually, or after exposure to severe temperature, shock, load, or other environmental influences.
It requires two 9 VDC batteries; alkaline batteries provide over 30 hours of life, while Ni‑cad batteries provide over 10 hours.
