PCB Terminals LM 3.5 is a compact double-level PCB terminal with a proven clamping yoke connection and 3.5 mm pitch. Conductor outlet direction is 90°. Suitable for connecting fixed wires.
The LM 3.5 series from Weidmüller is a compact double‑level PCB terminal with a 3.5 mm pitch and a proven clamping yoke connection. It supports conductor cross‑sections up to 1.5 mm (28‑14 AWG) and is rated for up to 320 V (IEC) or 300 V (UL) with corresponding current ratings.

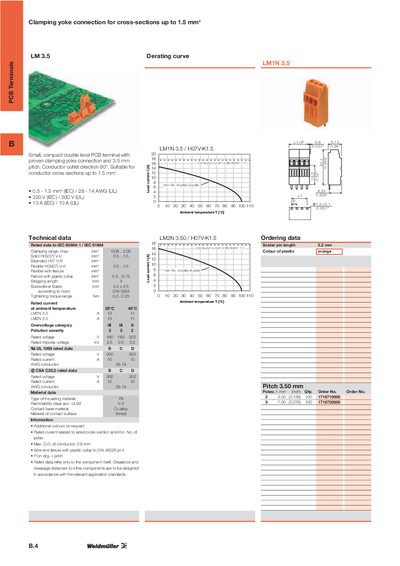

The leaflet lists detailed technical specifications, material data, and ordering options, including available pole counts, colors, and accessories such as marking strips and screwdriver blades. All ratings refer to the component itself; clearance and creepage distances must be designed according to relevant standards.
| Pitch | 3.50 mm |
|---|---|
| Clamping range (conductor cross‑section) | up to 1.5 mm (28‑14 AWG) |
| Rated current (IEC) | 13 A |
| Tightening torque range | 0.2–0.25 Nm |
| Solder pin length | 3.2 mm |
| Maximum conductor outer diameter | 2.9 mm |
It can clamp conductor cross‑sections up to 1.5 mm (28‑14 AWG).
The recommended tightening torque is between 0.2 and 0.25 Nm.
The terminal pitch is 3.50 mm.
