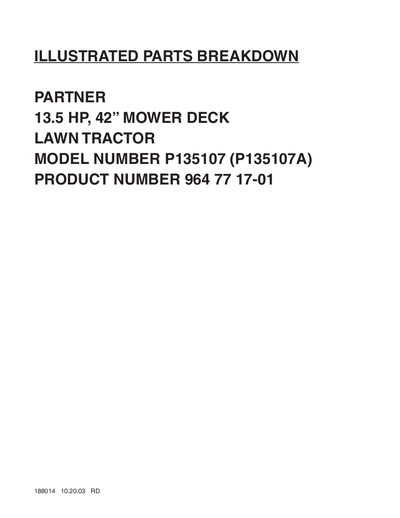

Partner P135107 (P135107A) Lawn Tractor Parts Breakdown

Illustrated parts breakdown for the Partner P135107 (P135107A) 13.5 HP, 42‑inch mower deck lawn tractor, with part numbers and dimensions.

Brand: Partner
Category: Other
Document type: Parts List
Language: English
Pages: 18
File format: PDF
File size: 685 KB
Published: 04 October, 2026
Updated: 04 October, 2026
MD5 checksum: 662472740F197B3F5889ED7669B4FE00
PDF: Partner P135107 (P135107A) Lawn Tractor Parts Breakdown PDF

About this manual

This document provides a detailed illustrated parts breakdown for the Partner P135107 (P135107A) lawn tractor. It is organized by major assemblies such as Electrical, Chassis, Drive, Steering, Engine, Mower Lift, Mower Deck, Optional Equipment and includes a wiring schematic.

Each part listing shows the part number, description, and dimensions in U.S. inches, helping technicians and owners identify the correct components for repair or replacement.

What's inside

Electrical
Chassis
Drive
Steering
Engine
Mower Lift
Mower Deck
Optional Equipment
Schematic

Specifications

Horsepower	13.5 HP
Mower deck width	42 inches
Battery voltage	12 V
Battery amperage	25 A

Frequently asked questions

What is the model number of the tractor?

The model number is P135107 (P135107A).

What size is the mower deck?

The mower deck is 42 inches wide.

What are the battery specifications?

The tractor uses a 12‑volt battery rated at 25 amps.
