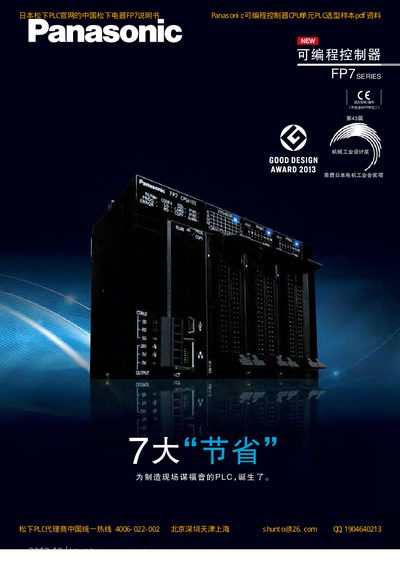

Panasonic FP7 programmable controller offers compact design, fast startup, extensive I/O options, and remote monitoring features.
The FP7 is a programmable controller designed for manufacturing sites, emphasizing seven "savings" – space, cost, programming time, maintenance, work monitoring, safety countermeasure labor, and debugging time. It provides high‑speed start‑up (1 µs), up to 196 k steps of program capacity, and up to 8,192 I/O points.
The controller supports Ethernet, RS‑232C/RS‑485, and modular analog/temperature plugins. Remote monitoring is possible via a built‑in web server (up to 256 connections) and email alerts, while data can be logged to SD cards in CSV format for analysis. This manual is written in Chinese.
| Program capacity | 196k steps |
|---|---|
| Maximum I/O points | 8,192 points |
| Rated input current | 2.7 mA |
| Maximum load current (transistor output) | 0.3 A |
| Response time OFF→ON | ≤0.2 ms |
The controller can handle up to 8,192 I/O points.
The transistor output unit supports a maximum load current of 0.3 A.
