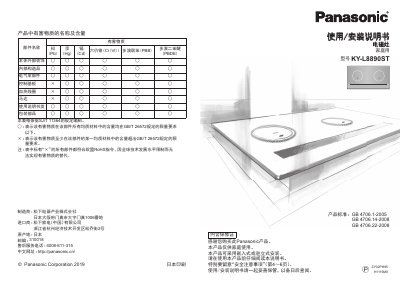

The Panasonic KY-L8890ST induction cooktop user and installation manual provides safety guidelines, setup instructions, operation features, cooking…
This manual explains safety precautions, installation options (embedded or freestanding), and the basic components of the KY-L8890ST induction cooktop. It includes detailed wiring requirements, grounding, and clear warnings to keep children and flammable objects away.
The guide covers operation of heating, oil‑frying and oil‑sauté functions, menu selection, voice prompts, timer settings, cleaning, troubleshooting, and full technical specifications such as power consumption, dimensions, and energy‑efficiency ratings. This manual is written in Chinese.
| Power Consumption | 3200 W |
|---|---|
| Voltage / Frequency | 220 V / 50 Hz (single‑phase) |
| Dimensions (W×D×H) | 742 mm × 400 mm × 107 mm |
| Weight | 11.8 kg |
| Standby Power | 1.0 W |
| Firepower Levels | 9 levels, 75 W – 3200 W |
| Oil‑Sauté Temperature Range | 140 °C – 230 °C (5 steps) |
| Oil‑Fry Temperature Range | 140 °C – 200 °C (7 steps) |
Read the safety sections, keep children away, do not place flammable items near the cooktop, and avoid using the unit for non‑cooking purposes.
Select the oil‑fry function and adjust the temperature within the 140 °C – 230 °C range using the five temperature steps.
The cooktop’s maximum power consumption is approximately 3200 W.
