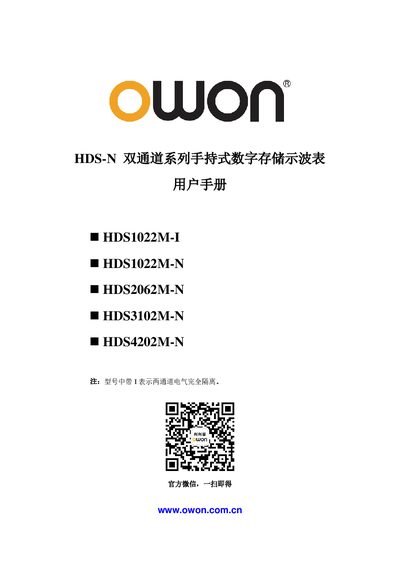

The OWON HDS‑N series handheld digital storage oscilloscope user manual provides safety information, setup, operation, measurement functions, and…
This manual covers the OWON HDS‑N handheld digital storage oscilloscope series, including models HDS1022M‑I, HDS1022M‑N, HDS2062M‑N, HDS3102M‑N and HDS4202M‑N. It begins with product certification, safety symbols, and general features, then guides users through initial inspection, connections, and basic operation.
Further sections detail advanced functions such as waveform acquisition, FFT analysis, cursor measurements, multimeter integration, and fault troubleshooting. Appendices provide technical specifications, battery maintenance, and cleaning procedures. This manual is written in Chinese.
| Sampling rate (HDS1022M‑I) | 100 MSa/s |
|---|---|
| Sampling rate (HDS1022M‑N) | 500 MSa/s |
| Maximum sampling rate (HDS4202M‑N) | 1 GSa/s |
| Input impedance (HDS1022M‑I) | 1 MΩ ± 2 % with 20 pF ± 5 % |
| Maximum input voltage | 400 V peak |
| Channel isolation voltage (HDS1022M‑I) | 1000 Vpp (AC+DC) |
| Display size | 3.7‑inch color LCD |
| Power consumption (HDS1022M‑I) | < 6 W |
| Weight | 685 g |
| Battery type | 7.4 V rechargeable Li‑ion |
A fully charged battery provides up to four hours of operation.
The two channels are not electrically isolated, so their ground leads must share a common reference to avoid short circuits.
