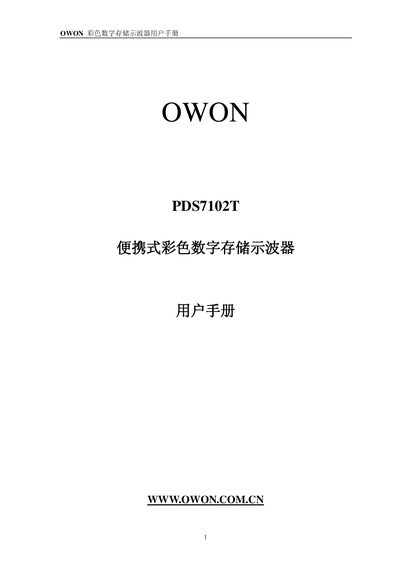

OWON PDS7102T Portable Color Digital Storage Oscilloscope User Manual, introduces how to safely use the product, product features and characteristics, and how to perform general inspection, function inspection, probe compensation, probe attenuation coefficient setting, how to safely use the probe, how to perform self-calibration, how to set the vertical system, how to set the horizontal system, how to set the trigger system.
This manual covers essential safety requirements, including proper grounding, use of supplied probes, and avoiding excessive input voltage. It also outlines the correct handling of power supplies, battery charging, and maintenance procedures to ensure safe operation.
The guide walks users through the front‑panel layout, vertical, horizontal, and trigger system settings, as well as automatic and cursor measurements. Appendices provide technical specifications, accessory lists, and battery usage instructions. This manual is written in Chinese.
| Battery charging time | 12 hours |
|---|---|
| Battery operation time | approximately 4 hours |
The battery should be charged for 12 hours before first use.
After a full charge, the battery can power the oscilloscope for about four hours.
