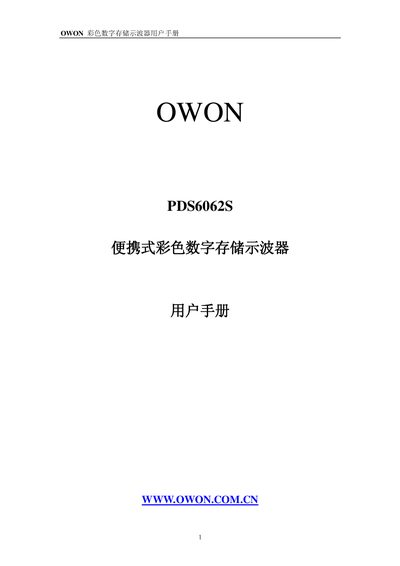

OWON PDS6062S Portable Color Digital Storage Oscilloscope User Manual introduces the features and characteristics of this product, including general safety requirements, warranty summary, table of contents, basic user guide, advanced user guide, application examples, troubleshooting, etc.
This manual covers general safety requirements, safety symbols, and detailed product features of the OWON PDS6062S portable color digital storage oscilloscope. It includes beginner and advanced user guides that explain front‑panel functions, probe compensation, self‑calibration, and how to set up vertical, horizontal and trigger systems.
Additional sections provide application examples, fault troubleshooting, technical specifications, accessory list, and maintenance procedures. The document is written in Chinese and is intended for qualified users and service personnel.
| Sample Rate | 250 MS/s per channel |
|---|---|
| Record Length | 6000 points per channel |
| Input Impedance | 1 MΩ ±2% || 20 pF ±3% |
| Maximum Input Voltage | 300 V peak |
| Display Size | 7.8‑inch color LCD |
| Power Supply | 100‑240 VAC, 50 Hz |
| Power Consumption | < 15 W |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -20 °C to +60 °C |
| Dimensions | 350 mm × 157 mm × 120 mm |
