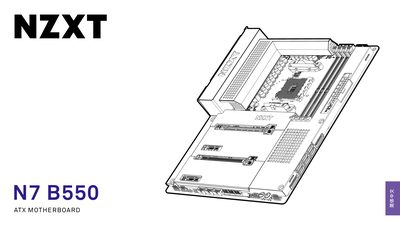

The NZXT N7 B550 ATX motherboard manual provides specifications, installation safety, and connector details for the ATX board.
This manual covers the NZXT N7 B550 ATX motherboard, including safety precautions, packaging contents, and detailed technical specifications. It guides users through proper handling, installation, and connection of components.
Key sections describe supported CPUs, memory configurations, expansion slots, storage options, networking, audio, and internal I/O. The document also includes regulatory information such as the EU WEEE statement. This manual is written in Chinese.
| CPU socket | AMD Socket AM4 for Ryzen 3000/4000/5000 series |
|---|---|
| Memory slots | 4 DIMM slots, up to 128 GB DDR4 |
| PCIe x16 slots | 2 PCIe x16 slots (PCIe 4.0 x16 or 3.0 x4 depending on CPU) |
| LAN | Realtek RTL8125BG 2.5 Gbps Ethernet |
| Wi‑Fi | Intel AX210 Wi‑Fi 6E (2.4/5/6 GHz, MU‑MIMO) |
| Audio codec | Realtek ALC1220 8‑channel high‑definition audio |
The package contains the N7 B550 motherboard, two 90° SATA cables, two 180° SATA cables, two M.2 screws, and two wireless antennas.
It supports AMD Socket AM4 Ryzen 3000, 4000, and 5000 series processors, but does not support Ryzen 5 3400G and Ryzen 3200G.
